NF-818L Underground Cable Locator Wire Tracer Detector with Earphone Test Network Cable Tracker Telephone Line Tester

Product Features:

1. Locating & tracking buried and hiddenwires, quickly and accurately locate the break-point and direction of undergroundand wall-through cables.

2. Suitable for 2.6 feet in depth and 1640 feet in length.

3.Short Circuittest Function: If there is a short circuit between the two lines under test, the short light willbe lit.

4. For single-core or double-core wire.

5. LED light and earphone.

6. Applicable to buried sprinkler valve, wire tracker, dog fence wire break locator, ducts, invisible fence wire break locator, walls buried wire tracer, electrical wiretracer, network cable tester, electric fence tester, etc..

How to find the wire locates?

1. Turn on the receiver and swing it back and forth. You will hear the sound "bi bi bi".

2. When approaching the breakpoint, the tone will weaken and then disappear.

3. If the tone disappears. lt means the breakpoint is at this location.

How to Enhance the Signal?

To enhance the signal you can make the ground stud and connect it.(Screwknives or metal slices can be used as a medium for ground studs)

Notes:

1.Do not use on live circuits to avoid damaging the Tester! Underground wire traceris only to locate a non-energized Cable.

2.For single-core or double-core wire:Red alligator clips is the signal line, Black alligator clips is used to connectthe ground or neutral line or unloaded.

3.For shielded wire and multi-stranded wire:

A:Unable to determine break-point due to signal interference, but line directioncan be tested.

B: lf it is the direction of the shielded wire detection line, the red clip should gripthe shielding layer.

Product Description:

Brand: NOYAFA

Product Name: Underground Wire Tracer

Type: NF-818L

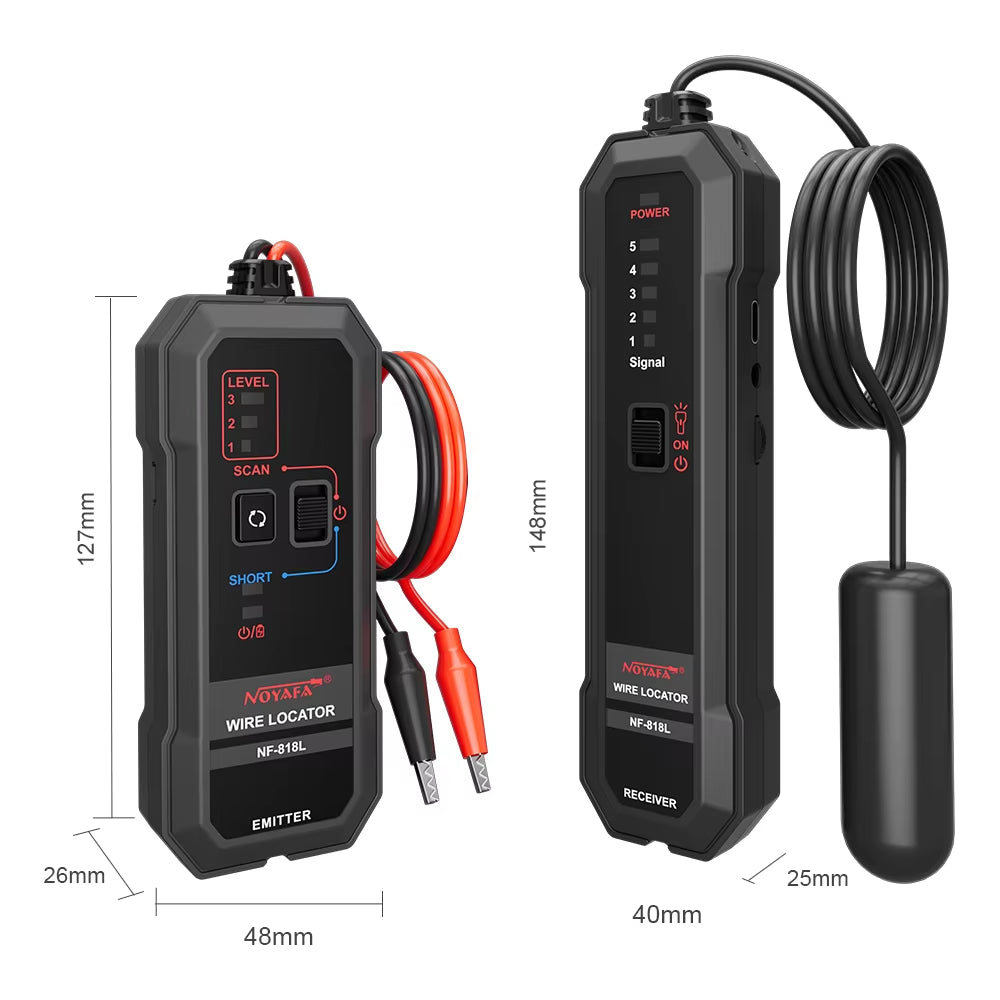

Dimension(LxWxD): Maintester: 127x48x26mm; Receiver: 148x40x25mm

The Maxlength distance: 500m(1640 feet)

The Max depth distance: 0.8m (2.6 feet)

Max.signal voltage: 45V
